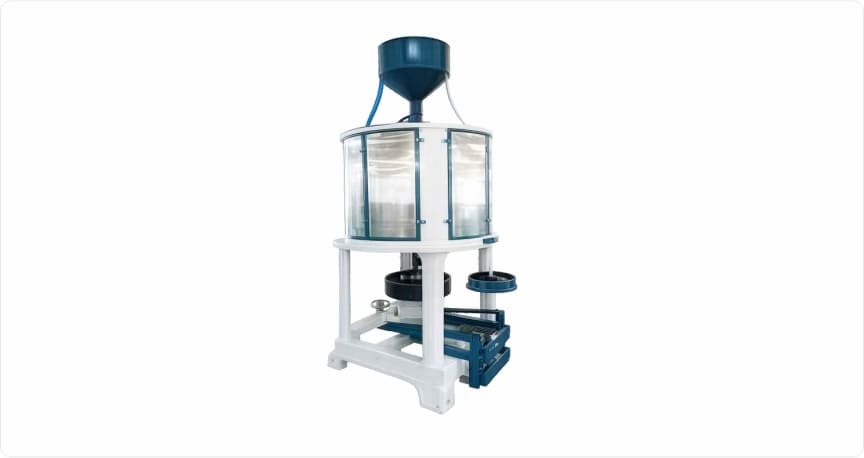

Cone Polisher

The Cone Polisher is a precision-engineered rice milling machine developed to deliver superior polishing and consistent grain quality. Designed with an advanced cone-shaped abrasive system, it ensures uniform contact with rice grains, resulting in excellent surface smoothness and an attractive, glossy finish.

Advantage of Cone Polisher

  • Cone Polisher are designer for superior output of whitened rice with less percentage of broken
  • Provides uniform whiteness on all the grains
  • Mounted with a differential type manometer for accurate
  • Control of chamber pressure
  • Capable of handling Raw, Steamed and Parboiled Rice

Technical Specification

Code No. Dimension
L × W × H (mm)		 Power Consumption
(HP) Machine & Blower		 Weight
(Kg)		 Input Capacity
(Paddy) TPH
PCP-30 1200 × 1200 × 1800 25 HP / 960 RPM 1700 kg 2–3
PCP-36 1200 × 1200 × 1800 30 HP / 960 RPM 1800 kg 3–4
PCP-40 1360 × 1360 × 2200 40 HP / 960 RPM 2000 kg 4–5
PCP-48 1560 × 1560 × 2200 50 HP / 960 RPM 2300 kg 5–6
