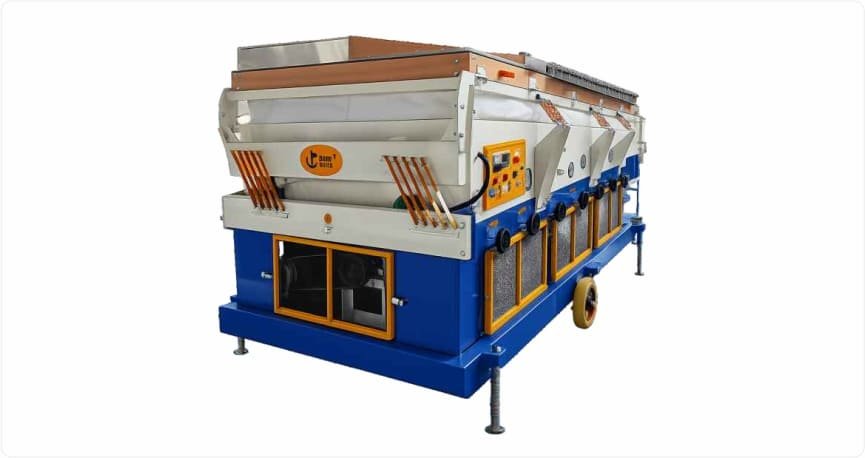

Gravity Separator

It is specially meant for upgrading of the product quality i.e. Seed/Grain etc. by separating the impurities on the basis of the difference in specific gravities which are otherwise of the same shape & size. The impurities which are of the same shape & size of the required quality product but having different specific gravity cannot be separated by Air Screen Seed Cleaner (Seed Graders), Length separators because these machines work on the principle of separation (grading) on the basis of difference in physical parameters like shape & size etc.

Technical Specification

Code No. Capacity No. of Fans Size of Deck Type of Deck Electric Motors Fan Deck Dust Canopy with Blower (Optional)
PGS-1 100 kg/hr. 1 850 x 550 mm Regular 1 HP 0.5 HP 2 HP
PGS-2 0.8–1 TPH 2 810 x 1240 mm Regular 3 HP - 2 HP
PGS-3 1.5–2 TPH 3 810 x 1600 mm Regular 5 HP 1 HP 3 HP
PGS-5 3–4 TPH 5 1050 x 2350 mm Regular 7.5 HP 1 HP 5 HP
PGS-6 5–6 TPH 7 1150 x 3110 mm Regular 10 HP 2 HP 5 HP
