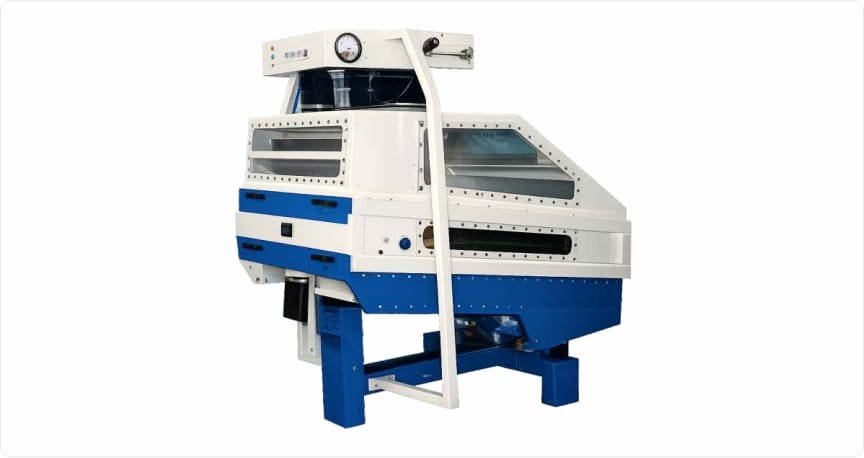

Vibro Destoner
A Vibro Destoner is a mechanical cleaning machine used in rice processing to separate heavier impurities (stones, metals, clods, gravel, hard soils, etc.) from lighter grains such as paddy, rice, and other cereals. It uses vibration, airflow, and grading motion to stratify and remove unwanted heavy materials that are similar in size to the grain but heavier in weight.
Advantage of Vibro Destoner
- The machine is designed to clean impurities like dust and paddy size impurities in the paddy.
- The machine functions effectively when the paddy is already pre-cleaned
- Equipped with superior quality vibro motors.
- Inclination of machine can be easily customized.
- Vibration force can be easily adjusted
Technical Specification
| Code No. | Dimension L × W × H (mm) |
Power Consumption (HP) Machine & Blower |
Weight (Kg) | Input Capacity (Paddy) TPH |
|---|---|---|---|---|
| PVD-4 | 1800 × 1450 × 2000 | 7.5 HP / 2800 RPM – 0.5 × 2 HP / 960 RPM | 750 kg | 4 |
| PVD-6 | 1800 × 1600 × 2000 | 10 HP / 2800 RPM – 0.5 × 2 HP / 960 RPM | 1000 kg | 6 |
| PVD-8 | 1800 × 1600 × 2000 | 12.5 HP / 2800 RPM – 0.5 × 2 HP / 960 RPM | 1300 kg | 8 |
