Paddy Separator

  • Blog
  • Paddy Separator

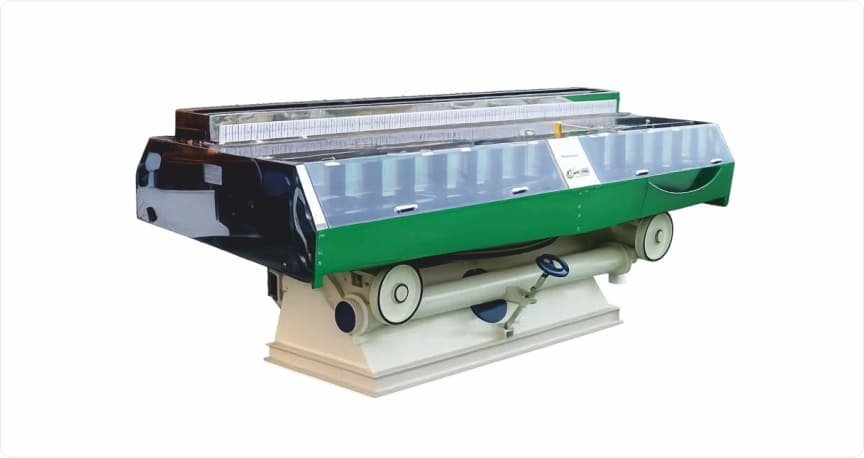

Steel Paddy Separator

The Steel Paddy Separator is a high-efficiency machine designed to separate unhusked paddy from brown rice after the shelling process. Built with a robust steel structure, this separator ensures durability, stability, and long-lasting performance even under continuous industrial operation.

Advantage of Paddy Separator

  • Separating Paddy from Rice
  • Torsion Free Table with Variable Strokes
  • Fine Separation
  • Minimum Power Consumption
  • Saving in Floor Space
  • Capacity per compartment increased up to almost 100%

Technical Specification

Code No. Dimension
LxWxH (mm)		 Power Consumption
(HP) Machine & Blower		 Weight
(Kg)		 Input Capacity
(Paddy) TPH
PSPS-60 2750 x 1740 x 1800 3 HP / 960 RPM 1600 3
PSPS-80 3620 x 1740 x 1800 3 HP / 960 RPM 1900 6
PSPS-100 4683 x 1740 x 1800 3 HP / 960 RPM 2100 8

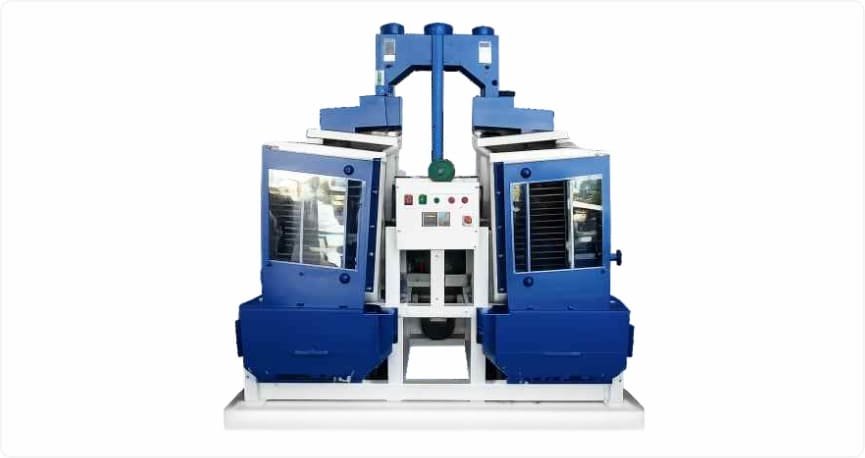

Butterfly Paddy Separator

The Butterfly Paddy Separator is a precision rice milling machine engineered to efficiently separate unhusked paddy from brown rice after the dehusking stage. Operating on the principle of gravity separation, it utilizes a specially designed butterfly-type tray system that enables accurate segregation based on grain weight, size, and surface characteristics.

Advantage of Paddy Separator

  • Higher output with adjustable speed.
  • Separations in three distinct classifications: Paddy, brown rice and mixture.
  • Stainless steel trays.
  • Sensor for flow indication

Technical Specification

Code No. Tray Size L x W x H (mm) Power Consumption (HP) Machine & Blower Weight (Kg) Input Capacity (Paddy) TPH Speed
PBPS-4 46 x 20 x 1 1730 x 1450 x 2030 2 HP / 960 RPM 550 4 280
PBPS-6 60 x 20 x 1 1800 x 1380 x 2030 3 HP / 960 RPM 650 6 280
PBPS-8 46 x 20 x 2 1730 x 2040 x 2030 3 HP / 960 RPM 1150 8 280
PBPS-12 60 x 20 x 2 1800 x 2250 x 2030 5 HP / 960 RPM 1300 12 280
