Husk Aspirator

  • Home
  • Husk Aspirator

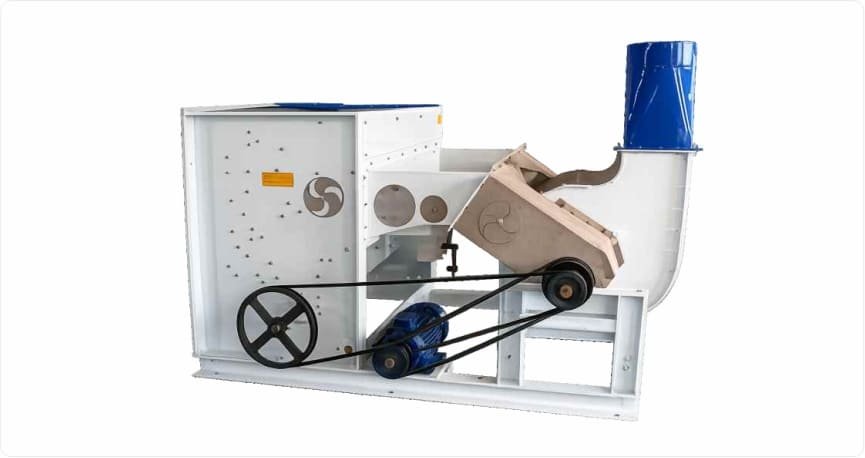

Husk Aspirator

The primary function of this machine is to efficiently separate husk from the shelled paddy. The shelled paddy is passed through a specially designed arrangement of flaps, which ensures effective separation by utilizing differences in weight and aerodynamic properties. This precise mechanism helps achieve higher separation efficiency, minimizes grain loss, and improves overall milling quality.

Advantage of Husk Aspirator

  • Equipped with a powerful blower for husk separation.
  • Immature paddy is separate via a conveyor.

Technical Specification

Code No. Dimension (L × W × H) (mm) Capacity on Paddy Power Consumption Speed Weight (Kg)
PHA-3 2300 × 1350 × 1440 3 Ton/Hr. 3 HP / 1440 RPM 1100 RPM 475 kg
PHA-4 2300 × 1500 × 1440 4 Ton/Hr. 5 HP / 1440 RPM 1292 RPM 525 kg
PHA-6 2300 × 1700 × 1440 6 Ton/Hr. 5 HP / 1440 RPM 1292 RPM 600 kg
