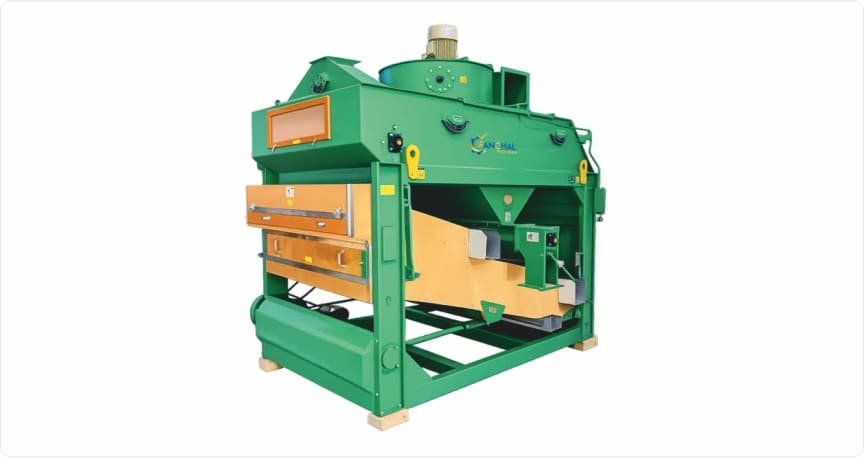

Paddy Cleaner
The Paddy Cleaner is a vital pre-cleaning machine in rice milling plants, designed to remove impurities such as dust, straw, chaff, stones, and other foreign particles from raw paddy. By ensuring effective cleaning before further processing, the machine helps protect downstream equipment and enhances the overall efficiency and quality of rice production.
Advantage of Paddy Cleaner
- Provided with closed circuit dust aspiration system
- Robust design and long lasting structure
- Low maintenance and high accuracy of machine
- Special grade metal sieve and wooden laminated frames used.
- Machine has integral fan, fixed speed driver and motors.
Technical Specification
| Code No. | Dimension L × W × H (mm) |
Power Consumption (HP) Machine & Blower |
Weight (Kg) |
Input Capacity (Paddy) TPH |
|---|---|---|---|---|
| PPC-4 | 2960 × 1650 × 2415 | 5 HP / 2800 RPM – 2 HP / 1400 RPM | 900 kg | 4–6 |
| PPC-6 | 2960 × 1890 × 2415 | 7.5 HP / 2800 RPM – 2 HP / 1400 RPM | 1200 kg | 6–8 |
| PPC-10 | 2960 × 2010 × 2415 | 7.5 HP / 2800 RPM – 2 HP / 1400 RPM | 1500 kg | 10 |

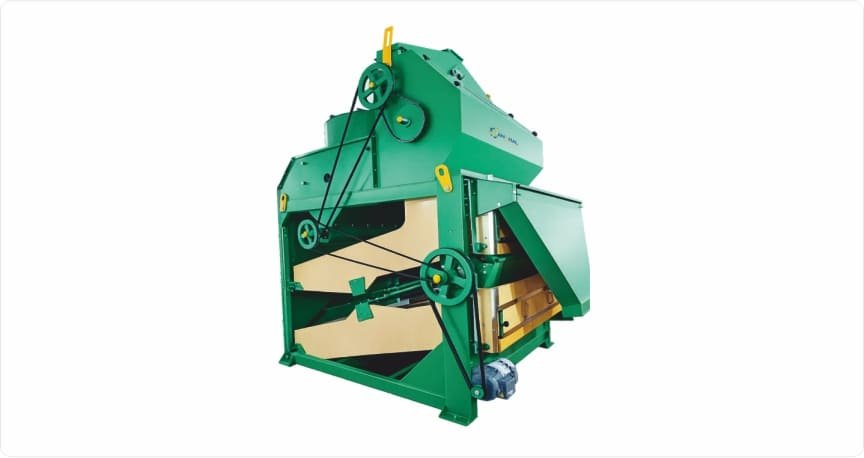

Double Deck Paddy Cleaner
The Double Deck Paddy Cleaner is a high-performance pre-cleaning machine designed to efficiently remove impurities from raw paddy before milling. Equipped with two precisely engineered screening decks, it ensures thorough separation of dust, straw, stones, husk, and oversized or undersized particles, delivering cleaner and more uniform paddy for downstream processing.
Advantage of Paddy Cleaner Double Deck
- Provided with closed circuit dust aspiration system
- Robust design and long lasting structure
- Low maintenance and high accuracy of machine
- Special grade metal sieve and wooden laminated frames used.
- Machine has integral fan, fixed speed driver and motors.
Technical Specification
| Code No. | Dimension L × W × H (mm) |
Power Consumption (HP) M/c & Blower |
Weight (Kg) |
Capacity |
|---|---|---|---|---|
| PPCDD | 2960 × 2250 × 3185 | 10 HP + 3 HP | 1800 kg | 16–20 TPH |
