PANCHAL TECH INDIA, an ISO 9001:2015 certified company, was founded in 1991 in Nissing, Karnal (Haryana), India, to manufacture machinery and equipment for the rice milling industry. At present, we offer a wide range of milling equipment for rice milling and seed processing. We are a well-established manufacturing company with over 20,000 sq. mtr. of working area and a full-fledged manufacturing plant located at Nissing, Karnal (Haryana), India.

Pre-Cleaner

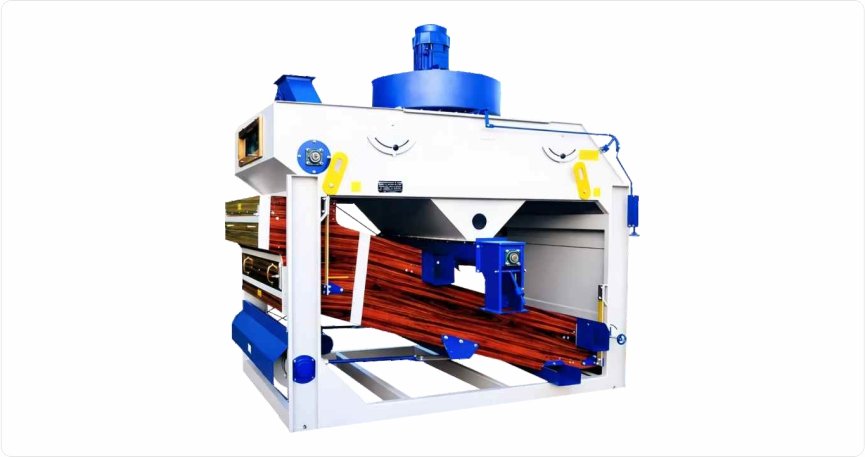

Seed Pre Cleaner

Machines are suitable for efficient cleaning of all cereal grains, pulses and pre cleaning of seeds of all corps such as wheat, paddy, barley, maize, millets, sunflower, soya bean, oilseeds, vegetable seeds, pulses, coffee seeds etc.

Technical Specification

Code No. Capacity Size of Each Screen Screen Inclination No. of Aspiration No. of Screen Fan Capacity Cleaning Area Cleaning Device Electric Motors
PSPC-2 2 TPH 600 × 1000 mm Fixed Two 3 layer 5 Sec. 5000 m³/hr 3 m² Rubber Ball 3 + 1 HP
PSPC-3 3 TPH 800 × 1000 mm Fixed Two 3 layer 5 Sec. 5000 m³/hr 4 m² Rubber Ball 5 + 1 HP
PSPC-5 5 TPH 1000 × 1000 mm Fixed Two 3 layer 5 Sec. 6500 m³/hr 5 m² Rubber Ball 5 + 1 HP
PSPC-8 8 TPH 1200 × 1000 mm Fixed Two 3 layer 5 Sec. 6500 m³/hr 6 m² Rubber Ball 7.5 + 1.5 HP
PSPC-10 10 TPH 1500 × 1000 mm Fixed Two 3 layer 5 Sec. 8000 m³/hr 7.5 m² Rubber Ball 7.5 + 2 HP

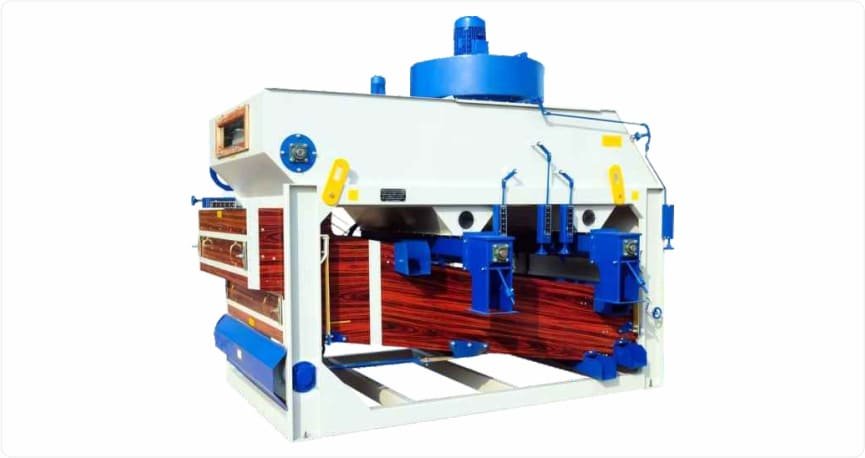

Seed Grader/ Fine Cleaner

Seed Grader/ Fine Cleaner is especially used for fine cleaning and grading of light and heavy seeds, cereals and granulated products. The machine can also be equipped to suit a variety of special jobs and purposes. The machine is constructed of steel with sieve boat of laminated wood.

Technical Specification

Code No. Capacity Size of Each Screen Screen Inclination No. of Aspiration No. of Screen Fan Capacity Cleaning Area Cleaning Device Electric Motors
PSCFC-1T 1 TPH 600 × 1000 mm Fixed Two 3 layer, 5 Sec. 5000 m³/hr 2.4 m² Rubber Ball 5 + 1 HP
PSCFC-2T 2 TPH 800 × 1000 mm Fixed Two 3 layer, 5 Sec. 5000 m³/hr 3.2 m² Rubber Ball 5 + 1 HP
PSCFC A 4 TPH 1000 × 800 mm Fixed Two 3 layer, 7 Sec. 6500 m³/hr 5.6 m² Rubber Ball 5 + 1 HP
PSCFC GRAND 5–6 TPH 1200 × 800 mm Fixed Two 3 layer, 7 Sec. 8000 m³/hr 6.7 m² Rubber Ball 7.5 + 1.5 HP
PSCFC A+ 8 TPH 1500 × 800 mm Fixed Two 3 layer, 7 Sec. 8000 m³/hr 8.4 m² Rubber Ball 7.5 + 2 HP
